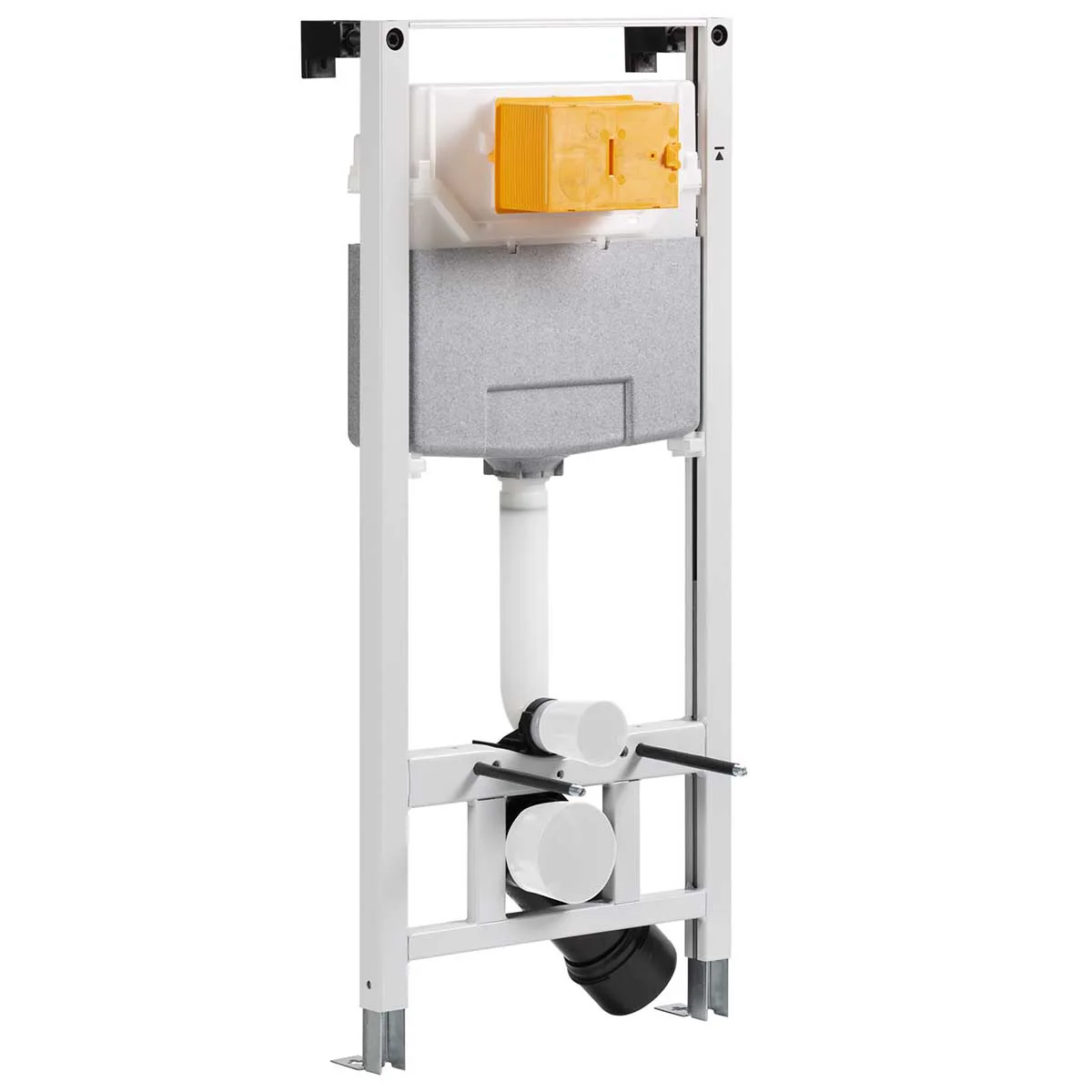

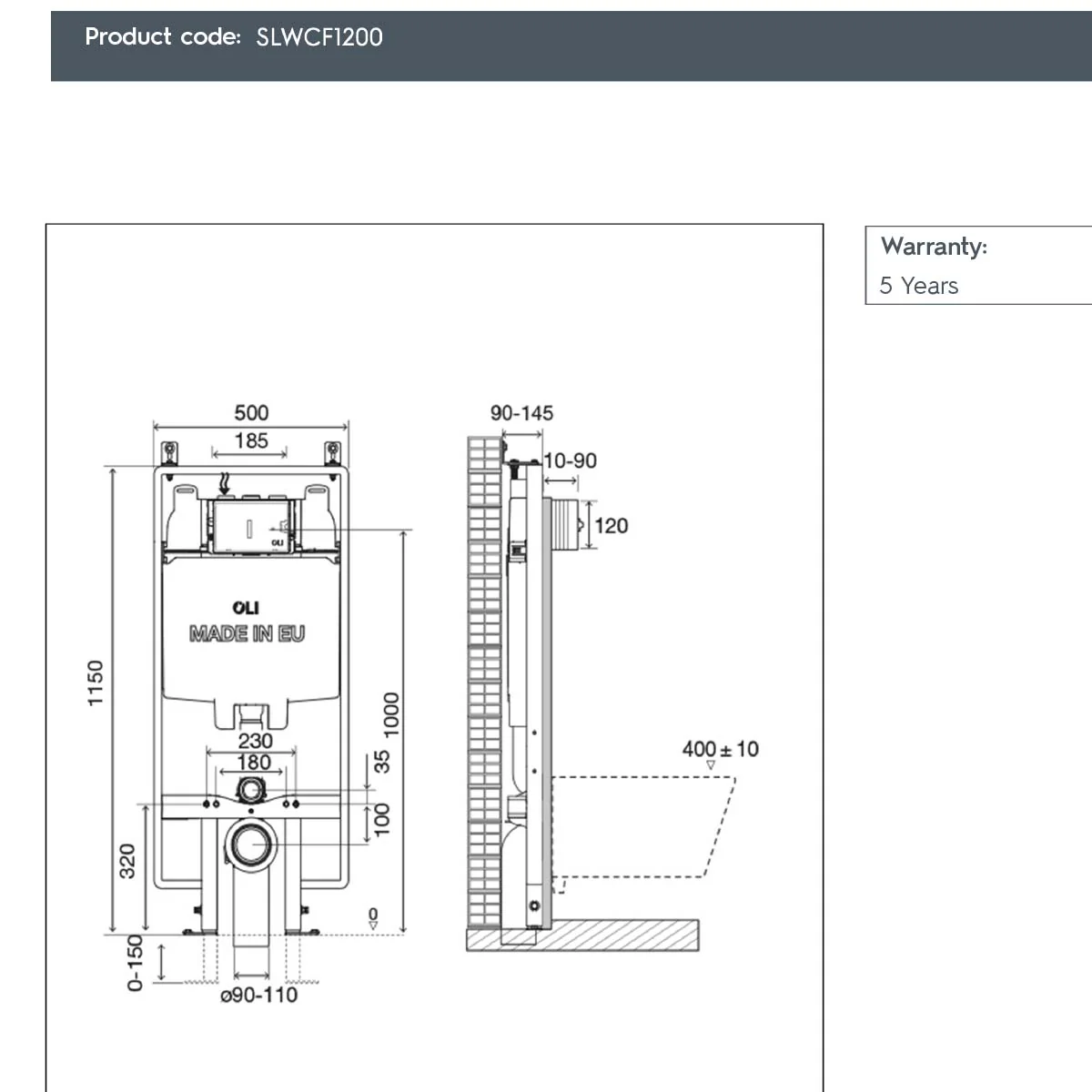

Every concealed toilet installation starts with a slim structure that quietly does the heavy work behind the wall. This floorstanding wc frame & concealed cistern is built for pre-wall fitting, with a 1.2m height and 0.50m width that allow it to sit neatly in compact bathroom spaces while still giving the WC the support it needs.

The frame forms the base of the setup, and the included brackets are what keep it firmly positioned before the wall is finished. From there, the WC bend becomes the essential link between the pan and the waste connection, helping the whole arrangement function correctly rather than simply look complete.

Inside the concealed system, the WRAS approved concealed cistern frame brings reassurance for plumbing use, while the metal and ABS plastic build gives strength for regular operation. As the cistern is hidden once installed, front flush access is important; this design is made for front installation only, so operation and future servicing can be reached from the visible plate area.

The final touch is the traditional polished gold flush plate, fitted in a portrait layout with two round buttons. Its pneumatic action sends pressure from the button to the cistern, allowing the 3/6 litre dual flush to work smoothly. Measuring 215mm wide by 145mm high, the plate is not just decorative — it is the control point that completes the concealed WC system.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Slim in-wall frame for a clean fitted appearance
• Floor-mounted design for secure support
• ABS cistern with durable metal structure
• Front flush installation only
• Includes soil pipe and fixing brackets
• 3L/6L flush volume options
• Height: 1.2m
• Width: 0.50m
• 2-year manufacturing guarantee, extendable to 5 years

Flush Plate:

• Traditional polished gold finish
• Metal plate
• Pneumatic press action for smooth flushing
• Twin buttons for small or large flush
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
