Fitted within the pre-wall structure, the concealed cistern sits behind the finished surface and stores the water needed for flushing. It works with a 3/6 litre system, giving a choice between a reduced flush and a full flush. Designed for front flush installation only, it keeps the operating point accessible while leaving the main mechanism hidden.

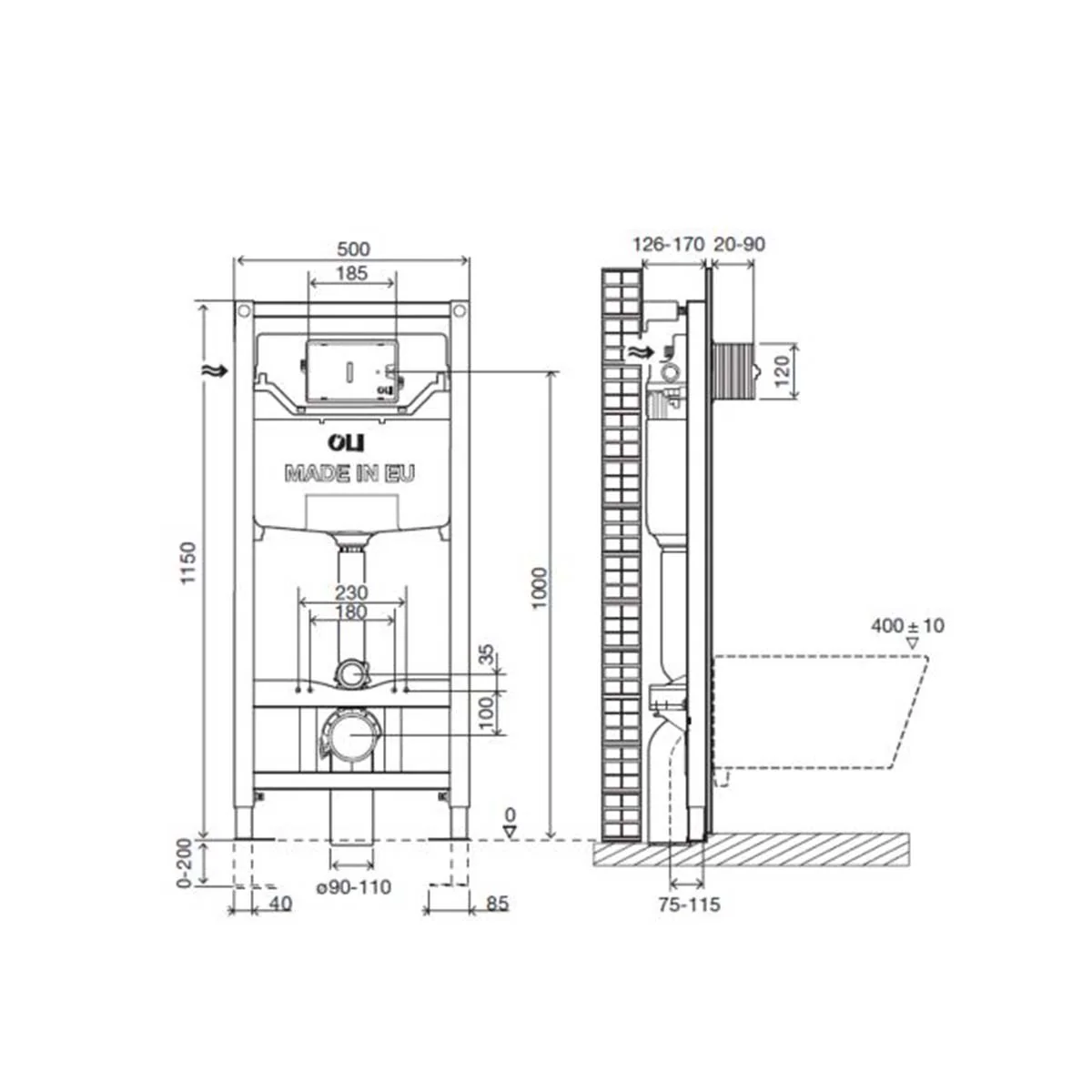

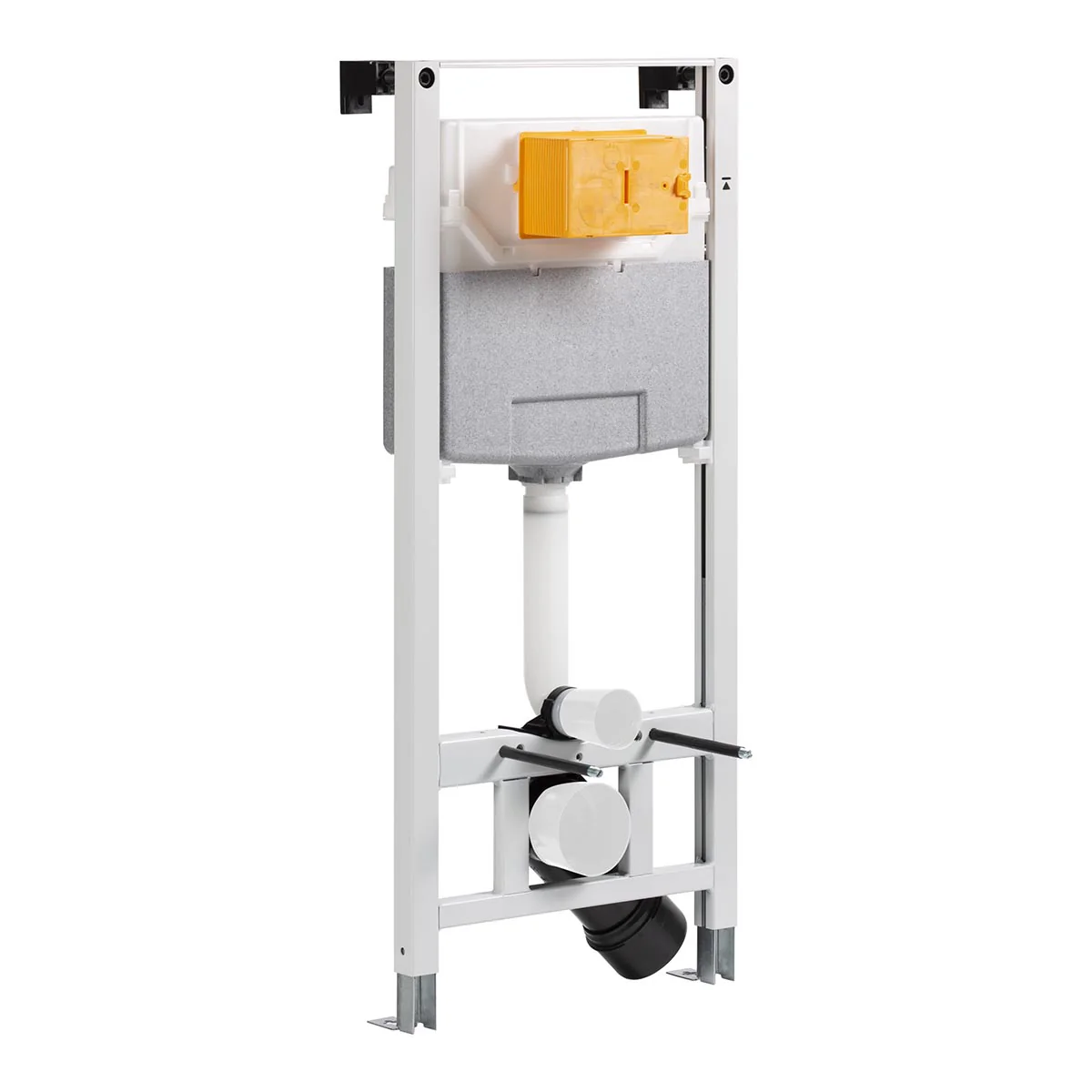

Supporting the installation, this wall hung toilet frame holds the pan securely and keeps the pipework organised out of sight. The freestanding W.C. frame has a height of 1.2m and a width of 0.50m, with supplied brackets to fix it firmly in position. The included W.C. bend connects the pan to the waste outlet, helping the whole setup work neatly as one concealed system.

Completing the set, the traditional polished gold flush plate is fitted to the front wall face and connects to the cistern through pneumatic operation. With a width of 215mm and a height of 145mm, it features two round buttons that use air pressure to activate either the lower or full flush, providing smooth control and a classic visible finish.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Built with a tough ABS plastic and metal structure

• Designed only for front flush fitting

• Comes with a soil pipe

• Supplied with installation brackets

• Offers 3L/6L dual flush options

• Height: 1.2m

• Width: 0.50m

• Includes a 2-year guarantee, extended to 5 years after registration

Flush Plate:

• Traditional polished gold finish

• Made from solid metal material

• Pneumatic push system gives smooth control

• Dual-button flush operation

• Allows half or full flush use

• Height: 145mm

• Width: 215mm

• 2-year manufacturing guarantee
