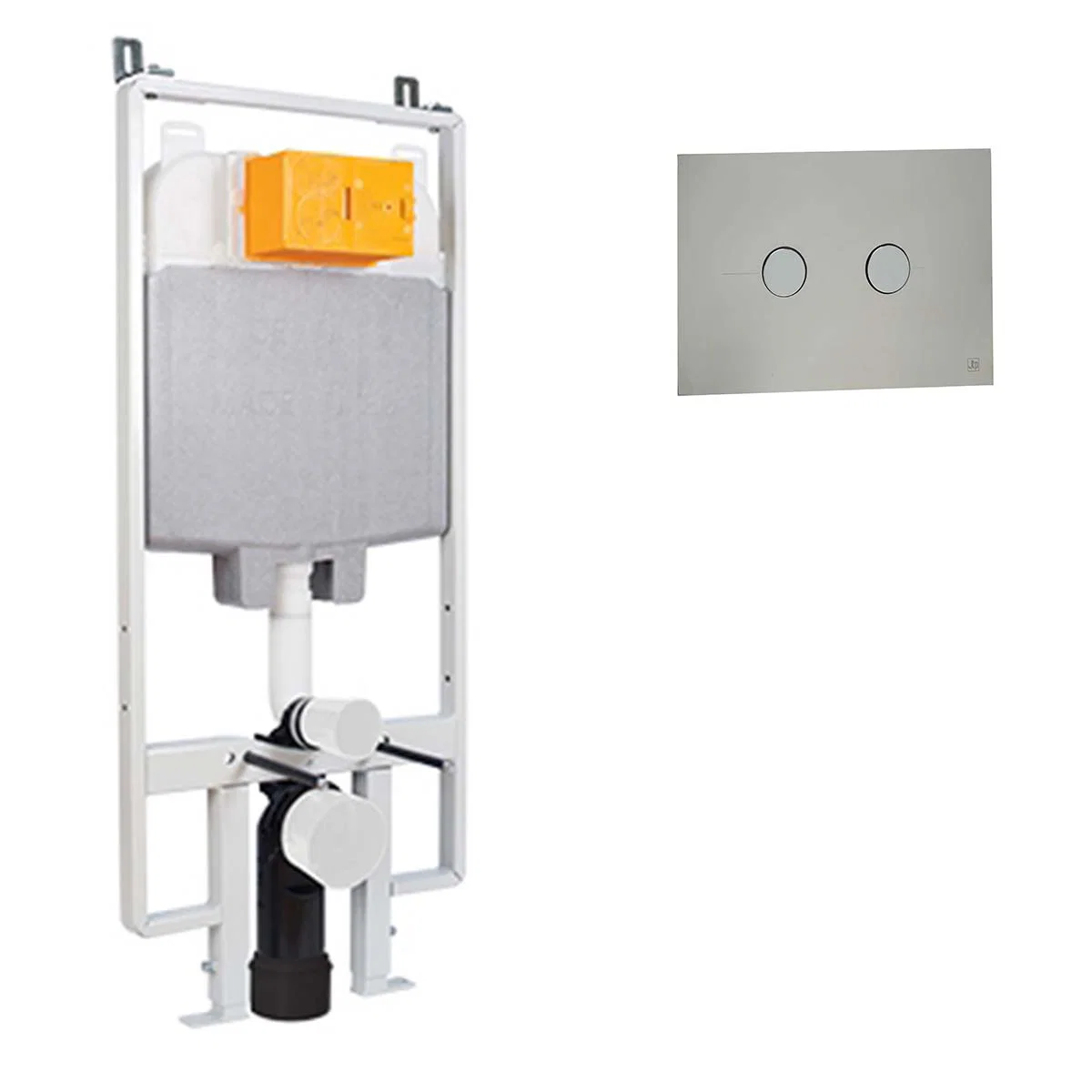

Mounted within a pre-wall setup, this slim concealed cistern wc frame provides a secure freestanding W.C. structure for keeping the flushing unit, pipework and waste route organised behind the finished surface. With a height of 1.2m and a width of 0.50m, its portrait format creates a narrow upright profile, making the installation neat, compact and space-conscious. WRAS approval adds reassurance for water supply compliance.

Supplied brackets help hold the frame firmly during fitting, while the included W.C. bend connects the pan to the waste outlet for a tidy enclosed system. Designed for front flush installation only, the control area remains accessible from the wall face for everyday use and servicing.

With two round pneumatic buttons, the modern chrome flush plate gives simple control over the flushing system, using 3 litres for lighter use and 6 litres when stronger performance is required. It measures 215mm in width and 145mm in height, adding a clean visible finish while the working parts remain concealed behind the wall.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Slim in-wall frame for a neat bathroom setup

• Made with ABS plastic and metal support

• Front flush installation only

• Includes soil pipe and fixing brackets

• 3L/6L dual flush choice

• Height: 1.2m

• Width: 0.50m

• 2-year guarantee, extendable to 5 years after registration

Flush Plate:

• Durable metal construction with chrome finish

• Pneumatic push control for smooth use

• Dual buttons for half or full flush

• Height: 145mm

• Width: 215mm

• 2-year manufacturing guarantee
